Products

CATEGORIA

OUR PRODUCTS

FEATURES

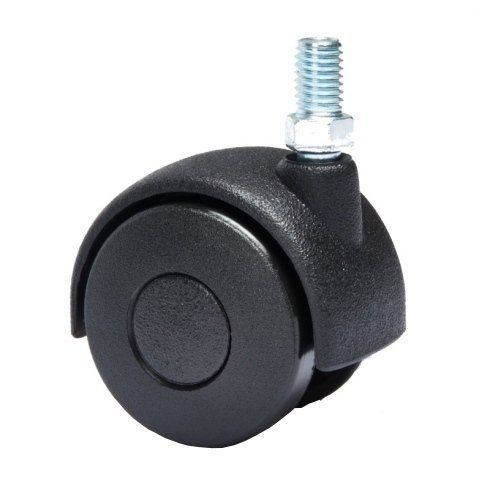

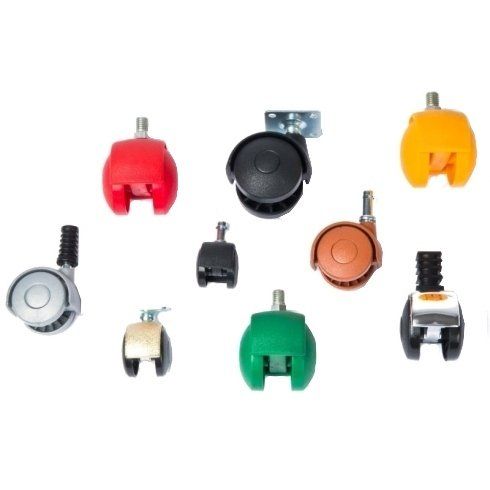

Double wheel in black or coloured plastic on request.
Available with support in chromium- or brass-coated plastic.

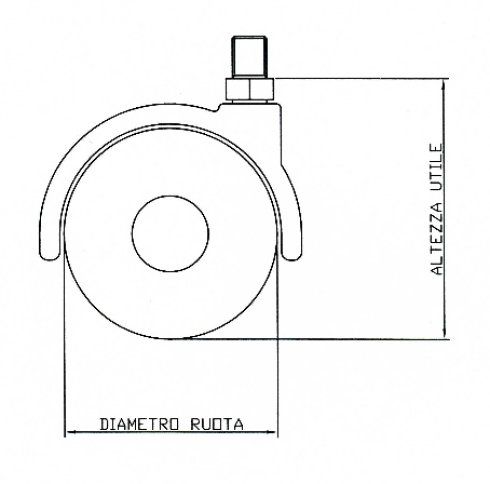

ITEM CODE WHEEL DIAMETER (mm) USEFUL HEIGHT (mm) LOAD (kg)
130 30 40 15
135 35 45 20
106 40 51 25
145 45 55 35
107 50 64 40





FEATURES

COMPATIBLE PIECES THREADED COUPLING KNURLED COUPLING SWIVEL PLATE COUPLING COUPLING W/ U-SHAPED PLATE FOR WOOD - VARIOUS WIDTHS QUICK COUPLING W/ OR W/O RING QUICK COUPLING W/ RING + COLLAR
Logo
ATTACCO FILETTATO

Attacco godronato

ATTACCO PIASTRA

Attacco piastra a U per legno vari spessori

ATTACCO RAPIDO CON O SENZA ANELLO

ATTACCO RAPIDO CON ANELLO E COLLARE
130 8MA x 10 mm.
 		   30 x 30 mm.    Ø 7 mm. Ø 8 x 16  mm.
135 6MA x 12 mm.
8MA x 10 mm.
8MA x 12 mm.
8MA x 15 mm.
8MA x 25 mm.
 		 Ø 8.1 x 11.5 mm. 30 x 30 mm.    Ø 7 mm. Ø 8 x 14  mm.
Ø 8 x 20  mm.
Ø 8 x 30  mm.

106 6MA x 12 mm.
8MA x 10 mm.
8MA x 12 mm.
8MA x 15 mm.
8MA x 25 mm.
8MA x 38 mm.
10MA x 12 mm.
 		 Ø 8.1 x 11.5 mm.
Ø 8.3 x 20 mm.
Ø 8.3 x 25 mm.
 		 30 x 30 mm.
42 x 42 mm.
 		 16 mm.
18 mm.
22 mm.
25 mm.
 		 Ø 7 mm.
Ø 8 mm.
 		 Ø 8 x 14  mm.
Ø 8 x 20  mm.
Ø 8 x 30  mm.
Ø 11 x 20  mm.

145 6MA x 12 mm.
8MA x 10 mm.
8MA x 12 mm.
8MA x 15 mm.
8MA x 25 mm.
8MA x 38 mm.
10MA x 12 mm.
 		 Ø 8.3 x 20 mm.
Ø 8.3 x 25 mm.
 		 30 x 30 mm.
42 x 42 mm.
 		 16 mm.
18 mm.
22 mm.
25 mm.
 		 Ø 8 mm.
Ø 10 mm.
 		 Ø 10 x 20  mm.
Ø 11 x 20  mm.

107 6MA x 12 mm.
8MA x 10 mm.
8MA x 12 mm.
8MA x 15 mm.
8MA x 25 mm.
8MA x 38 mm.
10MA x 12 mm.
 		 Ø 8.3 x 20 mm.
Ø 8.3 x 25 mm.
 		 30 x 30 mm.
42 x 42 mm.
 		 16 mm.
18 mm.
22 mm.
25 mm.
 		 Ø 8 mm.
Ø 10 mm.
 		 Ø 10 x 20 mm.
Ø 11 x 20  mm.



COMPATIBLE PIECES QUICK COUPLING WITH REDUCER FOR ROUND TUBE QUICK COUPLING WITH REDUCER FOR SQUARE TUBE QUICK COUPLING WITH SIDE REDUCER FOR SEMI-OVAL TUBE QUICK COUPLING WITH SIDE REDUCER FOR ROUND TUBE QUICK COUPLING WITH SIDE REDUCER FOR SQUARE TUBE COUPLING WITH WHEEL SUPPORT FOR WOOD - VARIOUS WIDTHS
Logo
ATTACCO RAPIDO CON RIDUTTORE PER TUBO TONDO

ATTACCO RAPIDO CON RIDUTTORE PER TUBO QUADRO

ATTACCO RAPIDO CON RIDUTTORE LATERALE PER TUBO SEMI OVALE

Attacco rapido con riduttore laterale per tubo tondo

Attacco rapido con riduttore laterale per tubo quadro

Attacco con supporto ruota per legno vari spessori
130

Ø 14 mm.

Ø 16 mm.

Ø 18 mm.

Ø 20 mm.

Ø 22 mm.

 20 x 20 mm.       hole in wood
Ø  20 mm.

135

Ø 14 mm.

Ø 16 mm.

Ø 18 mm.

Ø 20 mm.

Ø 22 mm.

 20 x 20 mm.       hole in wood
Ø  20 mm.

106

Ø 14 mm.

Ø 16 mm.

Ø 18 mm.

Ø 20 mm.

Ø 22 mm.

Ø 25 mm.

Ø 28 mm.

Ø 28.6 mm.

Ø 30 mm.

Ø 32 mm.


 20 x 20 mm.
25 x 25 mm.
 		 20 x 40 mm. Ø  32 mm. 30 x 30 mm. hole in wood
Ø  20 mm.

145

Ø 16 mm.

Ø 18 mm.

Ø 20 mm.

Ø 22 mm.

Ø 25 mm.

Ø 28 mm.

Ø 28.6 mm.

Ø 30 mm.

Ø 32 mm.


 20 x 20 mm.
25 x 25 mm.
 		 20 x 40 mm. Ø  32 mm. 30 x 30 mm. hole in wood
Ø  20 mm.

107

Ø 16 mm.

Ø 18 mm.

Ø 20 mm.

Ø 22 mm.

Ø 25 mm.

Ø 28 mm.

Ø 28.6 mm.

Ø 30 mm.

Ø 32 mm.


 20 x 20 mm.
25 x 25 mm.
 		 20 x 40 mm. Ø  32 mm. 30 x 30 mm. hole in wood
Ø  20 mm.
